Making the Switch to Open-Graded Permeable Base Installation: A Contractor’s Guide

Author: Stefan Poirier, Technical Advisor & National Trainer at ROMEX Hardscapes
CMHA/PICP Specialist | CPI / SRW / ASTMc1781 Qualified

If you have spent your career building on a dense-graded aggregate base, the kind of compacted 3/4-minus, road base, A-gravel, or flex base that has lived under every patio and driveway you have ever installed, the idea of switching to an open-graded permeable base installation can feel like a real leap. New materials. Different technique. And the nagging question of what happens if it does not perform the way the spec sheet says it will.

That hesitation is reasonable. It is also, almost without exception, temporary. Most contractors who complete their first open-graded permeable base installation come off the job site asking the same question: why did I wait this long to switch?

This guide walks through what actually changes when you move to a clean aggregate system, what the Concrete Masonry & Hardscapes Association (CMHA) technical documentation calls for, and the soil and drainage decisions that vary from job to job. The goal is to give you enough context to plan your first project with clear eyes and to know where the formal training and certification resources live when you are ready to make this a permanent part of your business.

Why Contractors Are Switching to Open-Graded Base Installation

The reasons are practical, and they show up on the job site within hours of starting the work.

A Cleaner Job Site From the First Truck Drop

Clean stone is exactly that. No fines, no dust, no mud tracked across the homeowner’s lawn after a rainstorm. Crews spend less time managing the work zone and more time actually installing. The reputation for leaving a clean site does not hurt the next referral either.

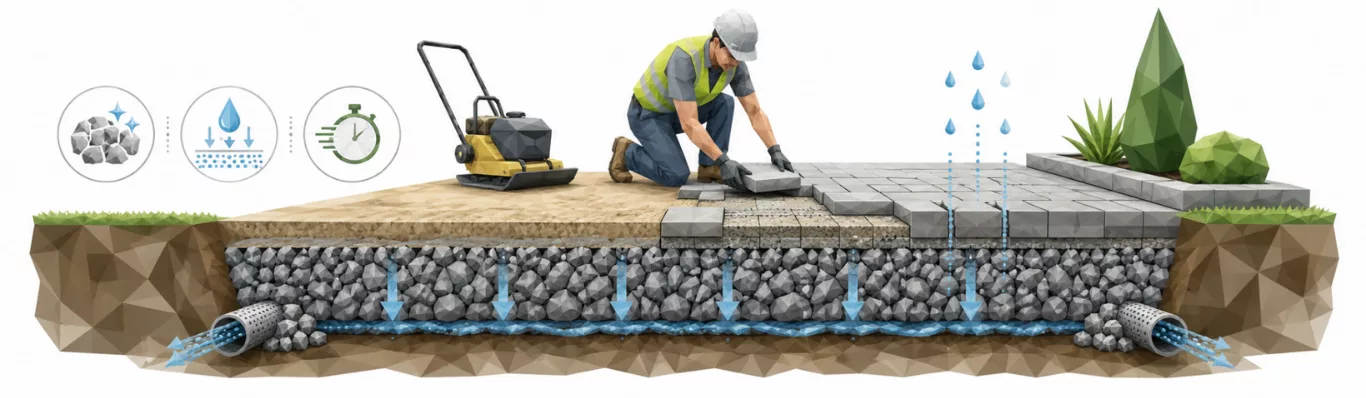

Less Compaction Effort and No Heavy Equipment Required

Dense-graded base demands serious compaction effort. Large plate compactors, multiple lifts, multiple passes, and ideally a proctor density test to confirm it was done correctly. In residential work, how often does that test actually happen?

Open-graded aggregate behaves differently. The material self-consolidates and nests into place under vibratory compaction. Stability comes from aggregate interlock rather than density, and you achieve it without the guesswork or the larger machines.

Industry Insight: CMHA Tech Note PAV-TEC-018 confirms that ASTM No. 57 open-graded base material can be compacted in a single 4-inch lift, compared to the multi-lift, high-effort process required for dense-graded materials.

Time Savings That Translate Directly to Margin

Fewer compaction passes. Faster aggregate placement. Less crew fatigue at the end of the day. Open-graded permeable base installation is routinely faster than its dense-graded counterpart, which either improves your margin on a fixed-bid project or lets you bring more competitive pricing to the next one.

No Guessing Whether the Crew Compacted Enough

Insufficient compaction is one of the leading causes of pavement failure in dense-graded systems. Settlement, rocking pavers, drainage issues. The problem is that without proper density testing equipment, it is nearly impossible to verify in the field.

Open-graded aggregate removes that uncertainty. Structural performance does not hinge on hitting a specific proctor density target. The aggregate locks itself together once compacted, and the system either is or is not.

Genuine Performance in Northern Climates

For Canadian and northern US contractors, this is the one that closes the conversation. Dense-graded base is frost-susceptible. Water trapped in the fines freezes, expands, and heaves the pavement above.

Open-graded systems carry approximately 50% void space, which lets water drain freely rather than accumulate. That void space also creates a capillary break, which eliminates the upward travel of water from below. The result is a base that is not susceptible to frost heave. For northern climate work, that is not a feature. It is the right call.

Not Every Site With Clean Aggregate Behaves the Same

Here is the single most important thing to understand before your first open-graded permeable base installation: the aggregate itself is consistent, but the soil underneath it is not. Subgrade conditions determine your drainage design more than anything else on the project.

Sandy Soils

Sandy soils offer good natural infiltration. Water percolates through the subgrade without assistance. In most cases, perforated underdrains are not required.

Clay Soils

Clay drains slowly and can retain water in the aggregate reservoir for extended periods. A perforated pipe underdrain system is typically required to move water away from the structure. Without it, prolonged saturation will compromise the subgrade over time.

CMHA Guidance: The CMHA Permeable Interlocking Concrete Pavements manual and ASCE Standard 68-18 provide detailed hydrologic and structural design guidance for determining underdrain requirements based on soil conditions.

Managing Water Away From Foundations

Regardless of soil type, water always needs to be directed away from buildings. That can mean:

Grading the subgrade to direct flow toward an outlet
Installing perforated pipes at the lowest point of the excavation
Directing water to a dry well or a daylighted outlet at the furthest practical point from the structure
Ensuring underdrains have adequate fall and outlet protection

Your site assessment before excavation should confirm soil type, proximity to foundations, and natural drainage direction. Those three pieces of information set up the entire system.

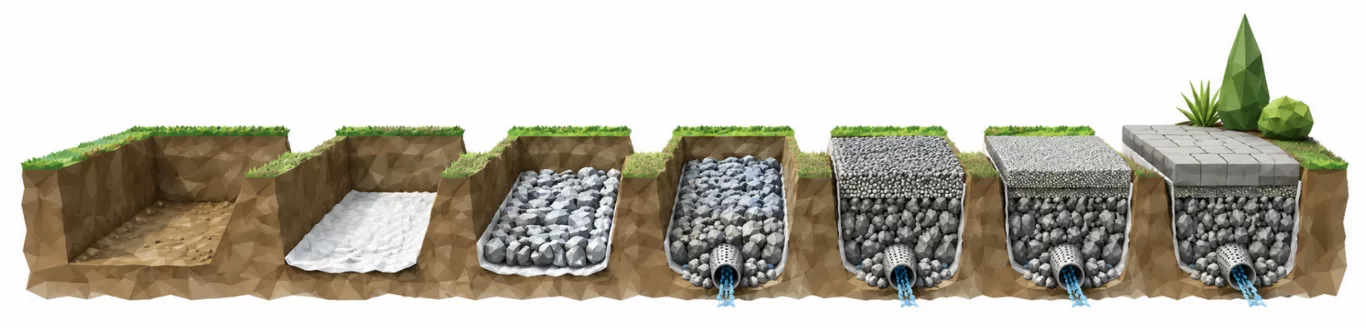

Step-by-Step: Excavation and Base Construction for PICP

The steps below align with CMHA Tech Note PAV-TEC-018 (Construction of Permeable Interlocking Concrete Pavement Systems) and the CMHA Permeable Interlocking Concrete Pavements manual, 5th Edition. Both documents are worth downloading and referencing on every PICP project.

Step 1: Excavation

CMHA recommends approximately 12 inches of combined subbase and base material for most residential and light commercial PICP applications. The actual excavation depth will vary based on the hydrologic and structural design for your specific project.

Excavate to the design depth
Grade the subgrade to slope toward the drainage outlet
Do not over-compact the subgrade. Over-compaction slows the natural infiltration rate into the soil and reduces system performance
Remove any sediment from the excavated area before proceeding
For heavy clay, chemical stabilization may be necessary. Apply approximately 50 lbs of lime or Type S mortar over every 75 to 100 sq. ft. Mix into the top 6 to 8 inches of clay using 3/4-inch angular stone with a jumping jack to alter the clay’s chemical structure, reducing its swelling potential and increasing load-bearing strength.

Step 2: Geotextile Fabric Installation

A non-woven geotextile fabric is placed along the bottom and sides of the excavation before aggregate placement. The geotextile does three things at once:

Minimizes differential settlement between the native soil and the aggregate system
Prevents aggregate from migrating into the subgrade
Allows water to pass while filtering fines from below

Select geotextile per AASHTO M-288 Geotextile Specification, as referenced by the CMHA PICP manual. Overlap a minimum of 12 inches in the direction of drainage.

Step 3: Subbase, the Angular Stone That Carries the Load

The subbase layer uses larger angular clean stone, typically ASTM No. 2, 3, or 4, ranging from approximately 2 to 3 inches in size. This layer carries the primary structural function.

Bearing capacity is the maximum load per unit area that the soil and base can support without shear failure or excessive settlement. It is the foundation of designing pavements that perform long term.

The subbase also functions as the water storage reservoir. The 50% void space holds stormwater temporarily, allowing it to infiltrate into the subgrade or exit through underdrains.

The subbase may be optional for pedestrian or light residential applications where the base layer alone provides sufficient thickness.

Step 4: Underdrain Pipes Where Required

Install perforated underdrains at the lowest point of the subbase before placing the base layer. In clay soils or sites close to foundations, route to a dry well or a daylighted outlet at the furthest point from the structure. Avoid over-compacting around the pipes during subsequent aggregate placement.

Step 5: Open-Graded Base With ASTM No. 57 Stone

The base layer uses ASTM No. 57 stone, a 3/4-inch clean angular aggregate that acts as both a structural layer and a choke layer between the finer bedding above and the larger subbase below. Spread and compact in a single 4 to 6-inch lift. Mist the aggregate before compaction to improve consolidation.

Step 6: Bedding Layer

The bedding layer for permeable installations is open-graded aggregate, typically ASTM No. 8, 89, or 9 stone. Not sand. This is the key distinction from conventional interlocking concrete pavement.

Thickness: keep the bedding layer to a strict minimum, never exceeding 2 inches
Place pavers immediately after screeding. Do not allow foot traffic or equipment on the screeded layer

A bedding compound built specifically for permeable installations needs to do three things at once: maintain structural integrity under load over time, resist migration and compaction, and preserve the porosity required for water transmission. That is exactly the gap that ROMEX TRASS BED was engineered to fill. It is a cementitious bedding compound containing Trass mineral, mixed earth-damp with ASTM #9 stone and water. The pozzolanic reaction between Trass and moisture stabilizes the bedding without sealing it, leaving roughly 50% void space for drainage. Per the TRASS BED product data sheet, the bed carries traffic loads up to 40 tons and stays permeable across freeze-thaw cycle.

publicly available and structured for permit and bid documentation.

Hybrid Base Systems: Where They Fit and Where They Do Not

Some installations use a hybrid base: a dense-graded aggregate (0 to 3/4-inch gravel) paired with a permeable chip bedding layer and resin-jointed sand. This approach lets some water infiltrate through the surface while retaining the familiarity of compacted dense base.

It is worth understanding the limitations honestly. Dense-graded base degrades when water is repeatedly introduced into it. If the permeable surface is sending water into a base that cannot handle sustained moisture, long-term performance will be compromised.

A few practical notes on hybrid systems:

A dense-graded 0 to 3/4-inch base with a 1-inch permeable chip bedding and resin-jointed sand can work for specific applications
Introducing water into a dense-graded base creates a long-term degradation risk
Open-graded base is preferred for genuine permeable performance
The ROMEX System Guarantee requires open-graded materials for permeable installations. Dense-graded base should not be used for this application.

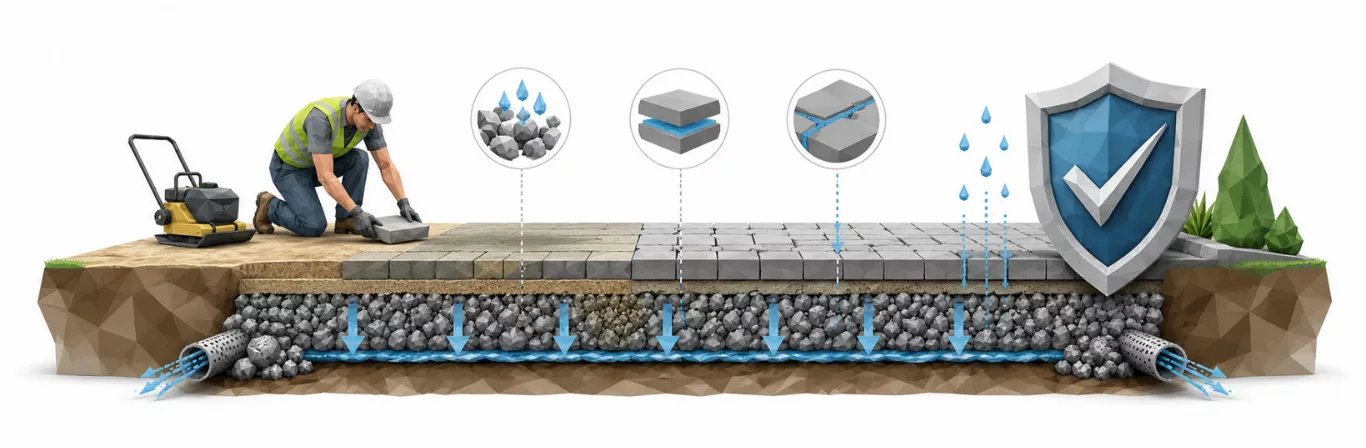

The ROMEX System Guarantee for Permeable Installations

For contractors who want to back the system with something more than a handshake, the ROMEX System Guarantee (RSG) is a manufacturer-backed 10-year performance guarantee available to homeowners when a ROMEX-trained contractor follows the documented installation system.

The system consists of:

ROMEX TRASS BED, the engineered bedding compound for stability and long-term permeability
ROMEX ADHESION ELUTRIANT, the compatible thin-set adhesive that creates a wet-on-wet bond between the paver and the bedding
A resin-based ROMEX jointing mortar matched to the joint width and traffic load
The 10-year System Guarantee, which becomes a real differentiator in the sales conversation

Foundation requirements still apply. The base must meet load expectations and adhere to industry standards for permeable pavement construction. Future loads cannot cause the surface to settle or loosen stones.

Your ROMEX representative is available to walk through product selection and installation before your first system project. The full technical data sheets and ROMEX Academy training are both worth completing before that first install.

Get Certified: The CMHA PICP Installer Course

If you are serious about adding permeable pavement to your service mix and making it a consistent revenue line, the CMHA PICP Installer Course is the credential to pursue.

What the Course Covers

Offered by the Concrete Masonry & Hardscapes Association, the PICP Installer Course is a one-day classroom or online program designed for experienced hardscape contractors. Topics include:

PICP systems overview and components
Job planning, documentation, and layout
Soil and site characteristics assessment
Subbase and base materials selection
Edge restraints and bedding/jointing materials
Paver selection and installation procedures
Long-term maintenance practices

Why Certification Matters

PICP certification is increasingly being required by municipalities, commercial clients, and state or provincial specifications. Holding a valid PICP certificate tells specifiers and clients that you have been formally trained on the system you are installing.

Demonstrates competency to commercial clients and municipalities
Opens doors to projects that require formal PICP training, including rain-ready programs
Provides access to the most current PICP construction knowledge in the industry

Register for the PICP Installer Course at pathlms.com/cmha/courses/44903. Additional information on CMHA Certified Installer credentials is at masonryandhardscapes.org.

Dense-Graded Base Is Not Obsolete. It Is Just Not the Only Tool.

For commercial applications where impermeable design is intentional and stormwater is managed through other means, dense-graded base remains a valid system. Nothing about open-graded permeable base installation makes the old method wrong.

What has changed is the size of the toolbox. Homeowners, municipalities, and landscape architects are increasingly specifying permeable systems for environmental and regulatory reasons. Knowing how to build open-graded base installations correctly puts you ahead of the contractors who have not made the switch yet.

After the first project, the cleaner site, the faster compaction, and a winter or two of watching the system perform without movement tend to settle the question.

Frequently Asked Questions

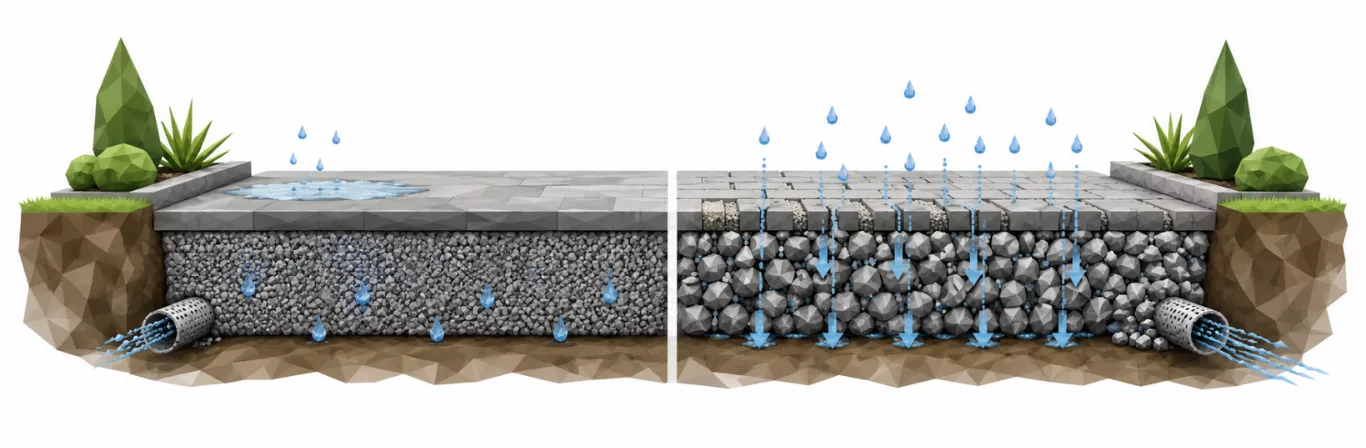

What is the difference between dense-graded and open-graded base?

Dense-graded base contains a mix of stone sizes with fines that compact tightly to form a near-impermeable layer. Open-graded base uses uniformly sized clean angular stone with no fines, creating approximately 50% void space for water storage and drainage. Open-graded base is the foundation of permeable interlocking concrete pavement systems.

Do I need underdrains for an open-graded base installation?

It depends on your soil. Sandy soils with good natural infiltration typically do not need perforated underdrains. Clay soils, sites close to foundations, or projects with limited soil infiltration capacity typically require underdrains routed to a dry well or daylighted outlet. A site assessment before excavation should confirm soil type and drainage direction.

How thick should an open-graded base be for a residential PICP project?

CMHA recommends approximately 12 inches of combined subbase and base material for most residential and light commercial applications. The actual depth varies based on the hydrologic and structural design of your specific project. Always reference the CMHA Permeable Interlocking Concrete Pavements manual or work with a qualified designer.

Can I use sand for the bedding layer in a permeable installation?

No. Permeable installations use open-graded aggregate, typically ASTM No. 8, 89, or 9 stone, for the bedding layer. Sand fines will migrate into the base over time and choke off permeability. The bedding layer should never exceed 2 inches in thickness.

Is the CMHA PICP Installer Course worth taking?

For contractors planning to make permeable pavement a regular part of their work, yes. PICP certification is increasingly required by municipalities and commercial clients. The course covers system design, materials selection, installation procedures, and long-term maintenance. It is offered by the Concrete Masonry & Hardscapes Association as a one-day classroom or online program.
