Outdoor Porcelain Tile Is Having a Moment. Here’s Why So Many Installations Are Failing
Author: Stefan Poirier
Technical Advisor & National Trainer at ROMEX Hardscapes
CMHA/PICP Specialist | CPI / SRW / ASTMc1781 Qualified
If you’ve walked through a high-end residential patio, a hotel pool deck, or a commercial plaza in the last two years, you’ve seen outdoor porcelain tile. The look is undeniable. The surface is clean, modern, low-maintenance, and resistant to almost everything a homeowner can throw at it. Spilled wine? Wipes off. Patio furniture dragged across the surface all summer? No scratches. Road salt in winter? Doesn’t absorb.
The product is excellent. The problem is that outdoor porcelain tile installation, as it’s currently being practiced across much of North America, is producing failure rates that should concern everyone using it.
Every season I take calls from installers describing the same set of symptoms: hollow-sounding tiles, broken edges, joints that have crumbled into dust, and individual pieces that have crept out of alignment. The volume of those calls is climbing in lockstep with how popular the product has become. And in nearly every case, the diagnosis is the same.
Why Outdoor Porcelain Tile Behaves Differently Than Concrete Pavers
Outdoor porcelain tile is a dense, vitrified ceramic material with near-zero water absorption. That’s a feature. It will not stain, it sheds water rather than holding it, and it resists deicing chemicals that would degrade other materials. But those same properties also mean porcelain tile behaves nothing like the concrete pavers most hardscape crews have spent decades installing.

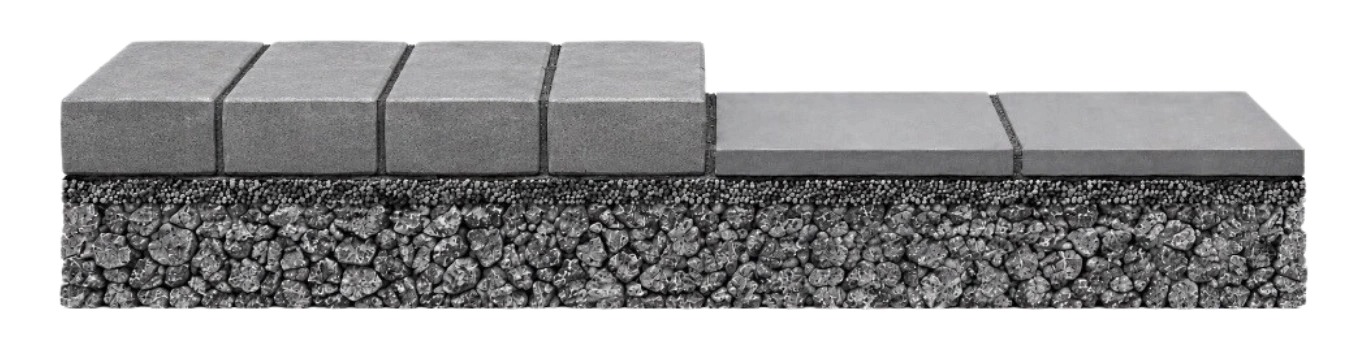

Concrete pavers work in a dry-lay sand-set system because of one thing: interlock. The geometry, thickness, and joint spacing of a concrete paver are engineered so that load applied to one unit transfers to its neighbors. Driveway-rated pavers start at 80mm thick and follow strict aspect ratio rules, generally no longer than four times their thickness. The system performs because the units are designed to perform together.

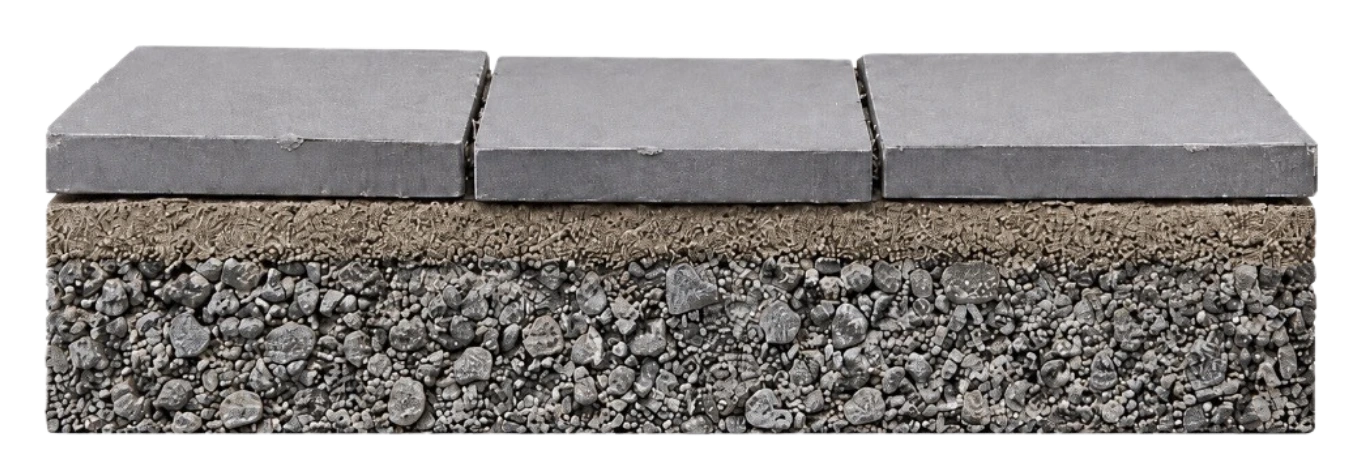

Outdoor porcelain tiles are not pavers. At 2cm and 3cm thicknesses, they’re classified as tiles. They have no interlocking geometry, no aspect ratio that allows for lateral load transfer, and not enough mass to resist movement on their own. Setting them on a sand or stone-dust bedding layer and expecting them to behave like interlocking concrete pavers isn’t a system. It’s a callback waiting to happen.
The Kitchen Floor Test for Outdoor Porcelain Tile Installation

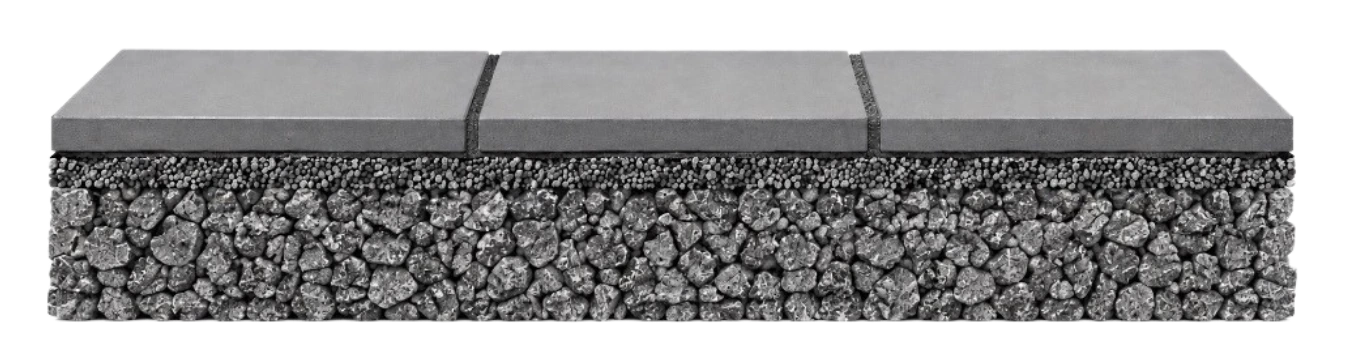

What a Proper Bonded Outdoor Porcelain Tile Installation Actually Requires
- A load-bearing, water-permeable base. Slope of at least 1.5 to 3 percent for water evacuation. Drainage measures where water can accumulate. No bath-tubbing under the bedding layer.
- A bonded bedding layer. Not sand. Not stone dust. A cementitious bedding compound engineered to bond to porcelain on the underside and to the base course below.
- A jointing material that drains, holds, and resists weeds. Joint width is a design choice in porcelain installations, which we’ll come back to. Whatever width you specify, the jointing product has to perform for the life of the surface.
publicly available and structured for permit and bid documentation.
A Design Advantage That Gets Overlooked
There’s one underappreciated benefit of outdoor porcelain tile that gets buried in every installation conversation: joint control.
Concrete pavers come with built-in spacer lugs that dictate joint width. You get what the manufacturer designed, and there’s a structural reason for it. Spacing pavers wider than the lugs allow compromises the interlock the system depends on.
Porcelain tiles have no built-in spacers. The installer controls the joint. That means a designer can open the joint up as wide as the project calls for, including wide enough to qualify as a permeable joint, the kind of detail typically relegated to one or two specialty pages in a paver catalog. It also means a project can incorporate strips of artificial turf, gravel, or planted joints between tiles, creating a hybrid surface that simply isn’t possible with conventional interlocking pavers.
That’s a real design conversation worth having with a client before the first tile gets ordered.
Five Questions Contractors Should Ask Before Quoting an Outdoor Porcelain Tile Job
Before pricing any outdoor porcelain installation, work through these five questions:
- Is the base open-graded and permeable, or is the assembly going to trap water under the tile?
- What’s the thermal movement range for the tile format being specified, and have movement joints been accounted for in the layout?
- What bonding system is specified, and does the tile manufacturer’s warranty actually require a bonded installation? (Many do.)
- Has the homeowner or designer been informed that joint width is a design choice, and have permeable joint and turf-inlay options been discussed?
- Are you prepared to back the work with a written guarantee, and does the installation method you’re proposing actually make that possible?
Outdoor porcelain tile is an excellent product when installed correctly. The aesthetics, durability, and design flexibility are genuinely compelling reasons to specify it. The performance follows the system. Pair the right product with a properly engineered bonded bed, and you have a finished surface that will look correct on day one and still be performing in year fifteen.
That’s the install you can stand behind, and it’s also the install where the next call from the homeowner is to ask you back for the front walkway.
Frequently Asked Questions About Outdoor Porcelain Tile Installation
Can you dry-lay outdoor porcelain tile on sand or stone dust?
In most exterior applications, dry-laying outdoor porcelain tile creates a high risk of movement, joint failure, hollow-sounding tiles, and freeze-thaw damage. Porcelain doesn’t interlock the way concrete pavers do, so a bonded installation method is the correct approach for long-term performance.
Why do outdoor porcelain tiles crack or break at the edges?
Edge cracking and chipping in outdoor porcelain typically traces back to one of three causes: unsupported edges due to inadequate bedding, point loads transferred through the tile because the bedding layer isn’t bonded, or freeze-thaw movement in an unbonded assembly. A properly applied bonded thinset on the underside of each tile, set into a cementitious bed, addresses all three.
What is the right thickness for an outdoor porcelain tile bedding layer?
The TRASS BED data sheet specifies a bedding thickness of 4 to 10 cm (1.5 to 4 inches), depending on expected loads and tile format. Pedestrian patios sit at the lower end, vehicular and heavy-load applications at the higher end. The specific depth for your project should match the loading category in the manufacturer’s coverage table.
How long after installation can you walk on or drive on outdoor porcelain tile?
For a TRASS-bonded installation, the surface can typically be walked on after 7 days, driven on by light vehicles up to 3.5 tonnes after 14 days, and is fully load-bearing after 28 days. Jointing can usually begin 48 to 72 hours after the bedding is set, depending on weather and mortar consistency.
Is outdoor porcelain tile a good choice for a driveway?
Outdoor porcelain tile can be specified for driveways, but only with a fully bonded engineered system. Sand-set or dry-lay porcelain on a driveway will fail. A bonded TRASS bed with thinset on the back of each tile produces a system rated for vehicular loads and is the method ROMEX warranties for that application.
